132,82 €
Includes 21% IVA, plus shipping**
**The delivery cost depends on the delivery location. Contact us via the feedback form or the “Request Price” button. You can also pick up your order in person at our office in Barcelona.
USB-C Power and Data on IEEE 802.3at Power Over Ethernet:
– PoE+ Adapter without cable
– Fits into a 60 mm deep EU wall box or US single gang wall box;
– Cable length can be adjusted;
– Dual USB-C ports: A for Power + B for Data or Power only;
– Provides Power Delivery Profiles: 5 volt, 9 volt, 12 volt, 15 volt, and 20 volt
– Compatible with cables for iPad (Pro, Air, Mini, or 10.2);
– Compatible with cables for Microsoft Surface Go, most types of Samsung Tab A/S and more;
(not compatible with Samsung 2020 Tab A7 SMT500 models)
– Requires PoE+ or IEEE 802.3at power;
– Developed in cooperation between PoE Texas and smart things;
– PoE Texas patents pending.
The PoE+ Adapter with extra cable is ideal for wall-mounted tablets or devices, schedulers, Zoom Room, Gotomeeting, Webex, Skype and other video conferencing POS stations and kiosks.
Technical Data:
Uplink Port Port: IEEE 802.3af and at full duplex data rate
Port USB-C Power: Role swappable, USB 2.0, USB-C PD 3.0 up to 25 watts 95 Mbps LED Indicator: Negotiated power status
Operating Temperature: -10°C – 60°C
Operating Humidity: 5% – 95% (Non-condensing)
PoE Standard: IEEE 802.3af/at/ (PSE)
PoE Line Pair: 1/2/3/4/5(+) or 3/6/7/8 (-)
USB-C PD Profiles: 5v 2.6 A, 9 v 1.78 A, 12 v 1.34A, 15 v 1.37 A, 20 v 1.15 A
Weight: 60g (2.4 oz.)
Cable Lengths: 0.3 m included in the box; 1.5 m or 2.5 m available
Compatibility:
Compatible to smart things sDock Fix wall mount series with any IEEE 802.3af/at PoE switch or injector
Supports all iPads or Microsoft Surface Go, Samsung Tab A/S and more (not compatible with Samsung 2020 Tab A7 SMT500 models). Extra cable required!
Aprovals:
CE, FCC, RoHS.
Scope of delivery:
sCharge PoE FIT (No cable included)

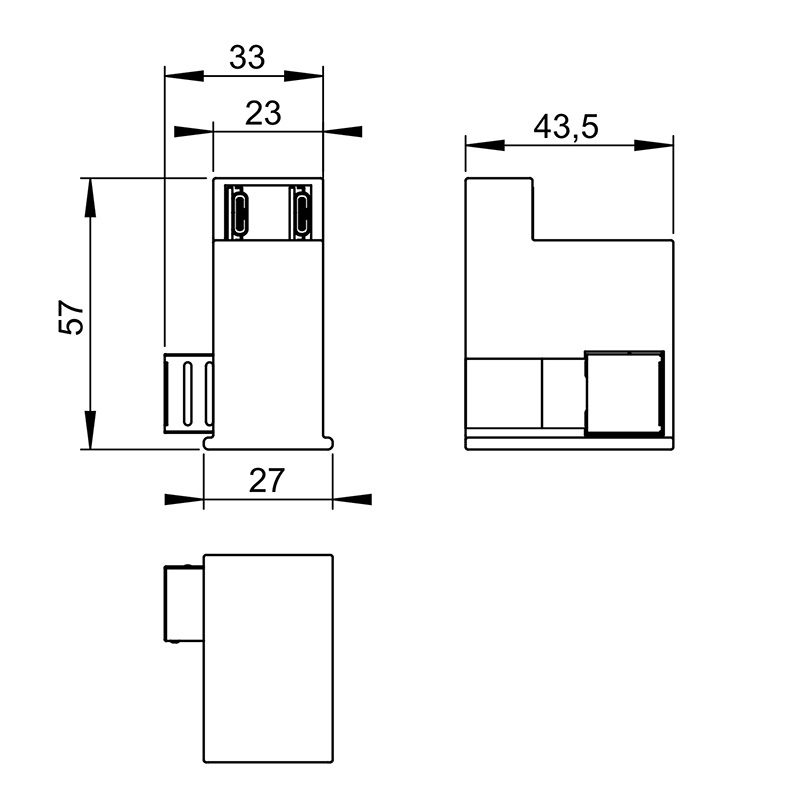

Dimensions:
57 x 44 x 35 mm (HxWxD)
Weight:
70 g (incl. adapter cable and packaging)
Packaging:
Completely made of cardboard
Made in China.
NOTE for Lightning users: Only our specially developed cables USB-C -> Lightning sXX-28-… can be used for this adapter!!!
